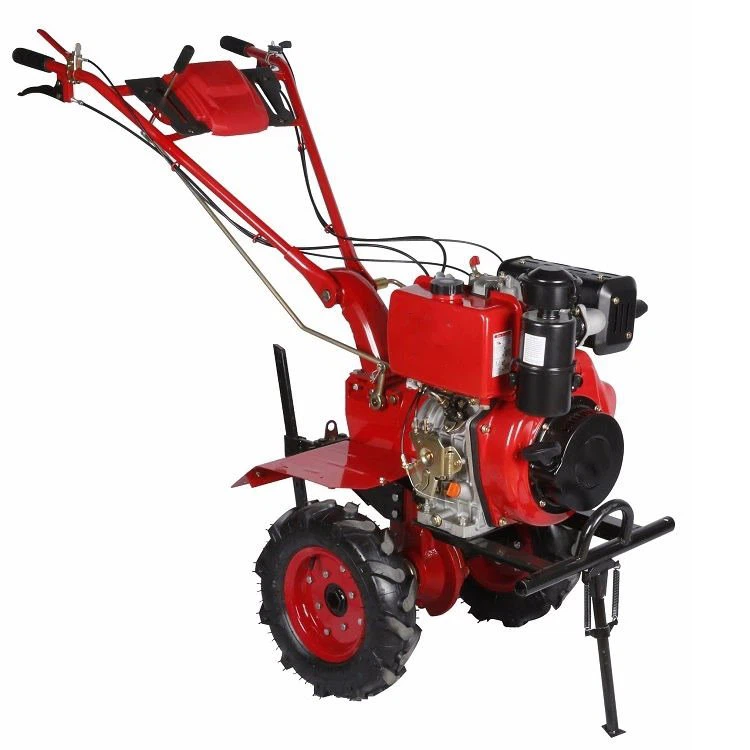

Tiller Motocultivator
tiller motocultivator also called agricultural diesel power tiller , powerful tiller ,works to complete the job quickly and effective ,easy to maneuver.
Description

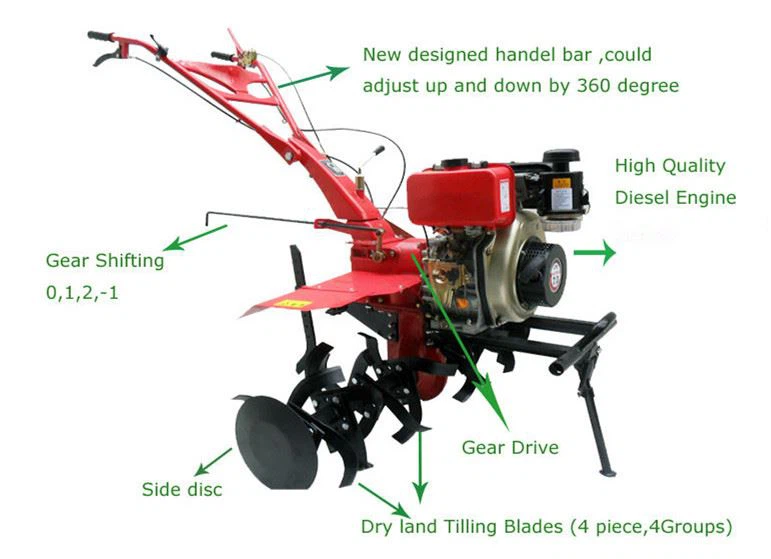

· tiller motocultivator is consists of four parts.186 diesel engine the brand can be CHANGFA etc.famous brands.gearbox is gear-driven transmission,which can keep maximum engine power for working.adjustable handlebar can up or down,all side turn.tires is 400-8/500-12 agricultural pneumatic tires,when you use the cultivator power tiller in paddy land ,just only change the pneumatic tires into iron wheel,then users also call it as paddy field power tiller.
Diesel tiller cultivator 9HP | |
Engine | CF 186/178 or other famous brand |
HP | 6-10HP |
CC | 418cc |
Bore and Stroke (mm) | 86*70 |
The rotation speed (rev / min) | 3000 |
Max engine power HP | 9 |
Fuel Capacity | 5,5L |
Casing capacity | 1,65L |
Working width | 40-135 |
working depth | 15-35 |
gears (forward/reverse) | 3+(1)/1+(1) - where (1) is reduced transmission |
Reducer | cast iron gear |
Weight | 155 |
PTO | 18mm |
electro start way | recoil /electric start |
Tyres with axes extender | 5,00-12 |
colour | Clients’request |
Accessories can be used for the rototillers,for example,plough,trailer,planter,mower,ditch ,weeder etc.
