10HP Diesel Tiller Cultivator
10HP diesel tiller cultivator,large horse power,lower fuel consumption,Equipped with different agricultural machines and tools, it can complete a variety of tasks.
Description

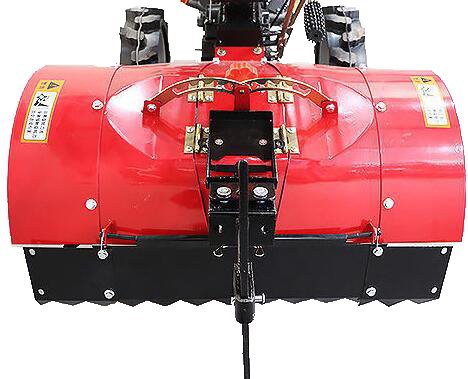

Connection box design of diesel engine power rotary tiller
The traction box is in the form of a large box set in a small box,fixed with 2 diameter 16pins,10HP diesel tiller cultivator is more stable and durable,and the resistance effect is better.
Ergonomic design
Our rotary tiller cultivator handlebars are designed with ergonomics and separated control,which will not cause physical fatigue due to abnormal postures during operation.
The 4wd 10HP tiller cultivator more comfortable to hold the handlebars and control the machine better.
Inclined resistance bar
The resistance bar adopts inclined surface resistance,which is divided into two angles to play a resistance role,so that the machine works best.
Multifunctional Diesel tiller cultivator | |||
Diesel engine | 173F | 178F | 186F |
POWER | 7.5hp | 9hp | 12hp |
Transmission Type | Gear drive | ||
Start Model | Manual/electric starter | ||
Working Width | 15cm-50cm | ||
Working Depth | 10cm-20cm | ||
Size of Wheel | 400-8/350-6 | ||
Adjustment of Handle Bar | 360 degree horizon and 45 degree vertical | ||
Fuel Consumption | ≤10kh/ha | ||
Fuel Tank | 3.5L | 5L | 6L |
Weight | 160kg | 180kg | 185kg |
Working Efficiency | o.1-0.2acre/h | o.1-0.2acre/h | 0.3-0.4acre/h |
Working Speed | >18m/min | ||
Package size | 800*460*900mm | 1000*600*800mm | 1000*600*800mm |
No. | Parameters | Design Data | ||
1 | Machine | Model name | / | 3TGQ-4C Power Tiller |
Structure | / | 4WD Drive | ||
Size(L*W*H) | mm | Ditching:1600×720×860 | ||
Ridging:1600×720×860 | ||||
Main gearbox structure type | / | Gear | ||
Material of main gearbox case | / | Cast Iron | ||
Structure type of auxiliary gearbox | / | Gear + chain drive | ||
Sub-transmission box material | / | Cast Iron | ||
Handlebar level adjustment range | / | 270° | ||
Handlebar up and down adjustment range | / | 29° | ||
Engine output transmission mode | / | Gear drive | ||
2 | power | Work speed | Km/h | ≤10 |
Structure | / | Single cylinder vertica four-stroke | ||
Rated speed | KW | 4 | ||
Starting method | r/min | 3600 | ||
/ | Manual/Electric Starter | |||
Fuel type | / | Gas/diesel | ||
3 | Ditcher | Opener type | / | Drive knife wheel type |
Transfer method | / | Gear+chain drive | ||
Connection method | / | Direct connection | ||
Working width of ditching | cm | 25-35 | ||
Trenching speed | km/h | ≥0.2 | ||
Operating productivity | hm²/h | ≥0.1 | ||
Ditching depth | cm | 15-20 | ||
4 | Ridger | Number of ridges | Ridge | 1 |
Transfer method | / | Gear + chain drive | ||
Connection method | / | Direct connection | ||
Ridge working width | cm | 30-40 | ||
Ridging speed | Km/h | ≥0.2 | ||
Ridge height | cm | 10-20 | ||
Operating productivity | hm²/h | ≥0.1 | ||
Ridge width | cm | ≥10 | ||
Optional accessories:ditch,rotary tilling,weeder,planter.
how can we guarantee the quality? One step: pre-production sample before mass production,then final Inspection before shipment;
3. what can you buy from us?Mini tractor ,Walking tractor,gasoline engine power tiller,diesel engine power tiller,rotary tiller,mower,plough,trailer,brush cutter .4. why should you buy from us, not from other suppliers?10 years' focusing makes Agricultural l machine, We have a huge factory and our own technical research center. Not only manufacturing but also creation will enable us to do more and more,follow clients’ request.
Hot Tags: 10hp diesel tiller cultivator, China, suppliers, manufacturers, factory, customized, wholesale, cheap, CE, durable, 1 years warranty, Power Tillers, Multifunctional Power Tiller, Mini Power Tiller
